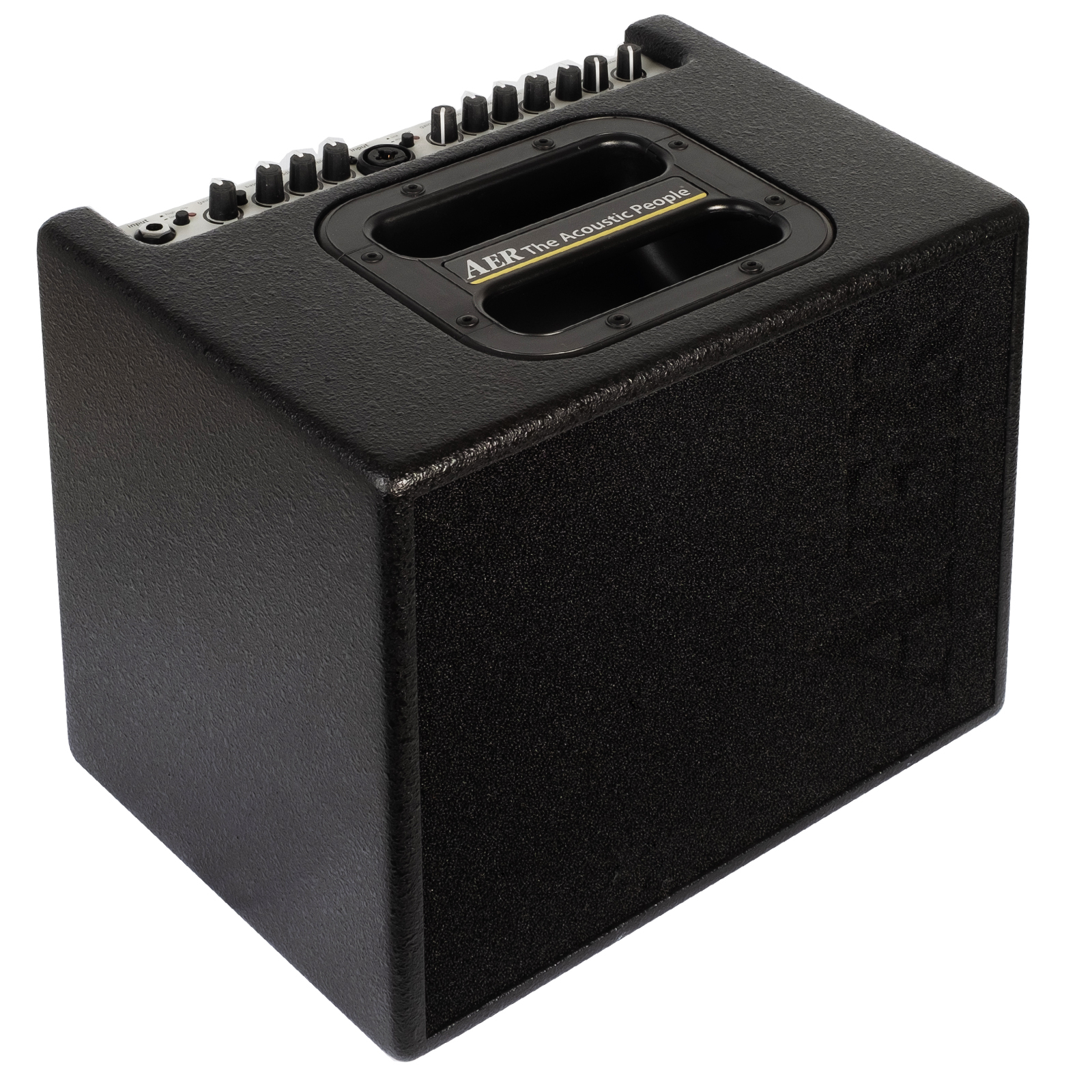

AER Compact-60/4 2024

• 60w Acoustic Combo Amp
• 8″ Twin-Cone Speaker
• 2 channels, 2 inputs
• 3 & 2 band EQ, “Colour” control
• 4 digital effects presets (3 reverb, 1 chorus)
• NEW DI out with pre-FX/post-FX switch
• 12mm Birch plywood cabinet
• Includes padded gig bag
• 14.3 lbs total weight

Two independent channels for instrument and z. B. high quality condenser microphones.

Channel 2 provides 48-V phantom power.

For channel 1, 9 V phantom power can be switched on in order to supply your pickup system with the required voltage.

A customized 8“ twin cone loudspeaker and 60 watts RMS output power, sufficient to dynamically and powerfully amplify your instrument in every rehearsal room and on club stages.

• High-end DI-out to the FOH system
• 4 onboard effects: short reverb, long reverb, delay, chorus

  The effect can be added to each channel via a PAN control.

• 7,3 kg light weight, transportable in all public transports and also as hand luggage on airplanes.
• Independent 3/2-band EQ

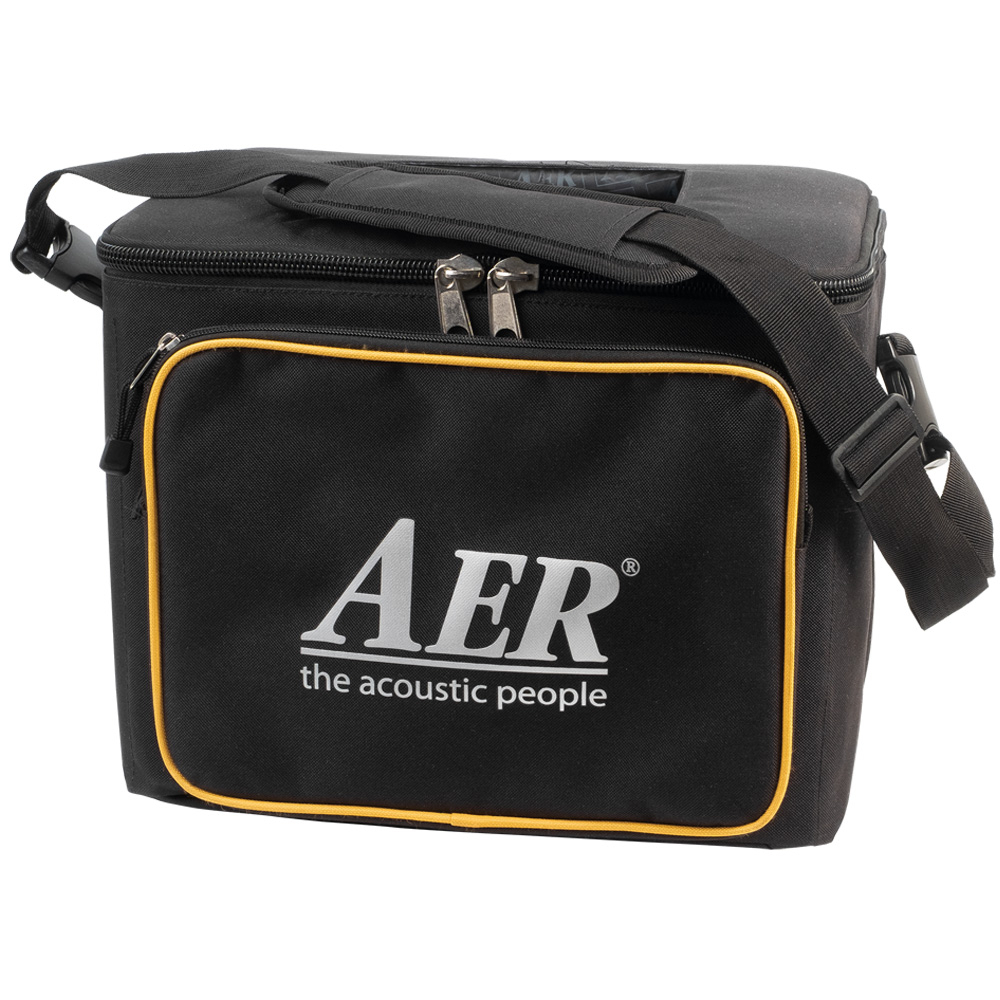

• All AER amplifiers are delivered with a high quality padded gigbag.

Recommended are: Acoustic guitar, voice, wind instruments, mandolins, oud, traditional Chinese instruments, mouth harp, but also cellos and electrical instruments…

The weight includes: Amplifier, bag, cable, user manual

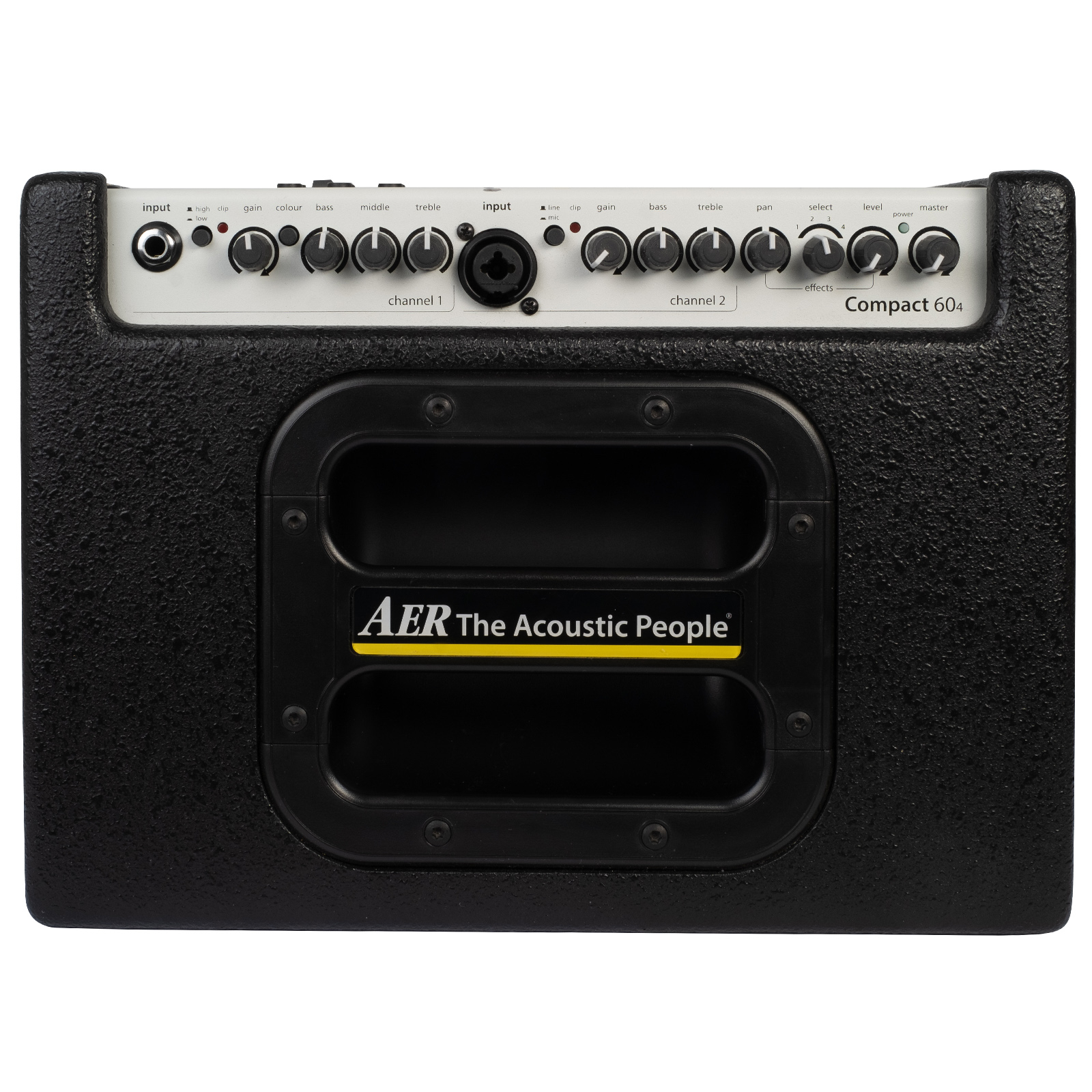

Channel 1

6.3 mm (1/4”) input jack socket

as high impedance line input stage with pad (high/low

attenuation) 9 V phantom power

and gain control

• Channel 2

  combined XLR/6.3 mm (1/4”) input jack socket as high quality line or balanced microphone input stage 48 V, gain control

• Equalizer

  three band tone controls for channel 1 and

  two band tone controls for channel 2

• Colour

  ‘mid-cut-treble-boost’-filter

• Digital effect processor with 4 presets:

  2 x reverb, delay, chorus

• Power amp

  60W / 4 ohms, dynamic control

• Speaker system

  8” (200 mm) twin cone speaker

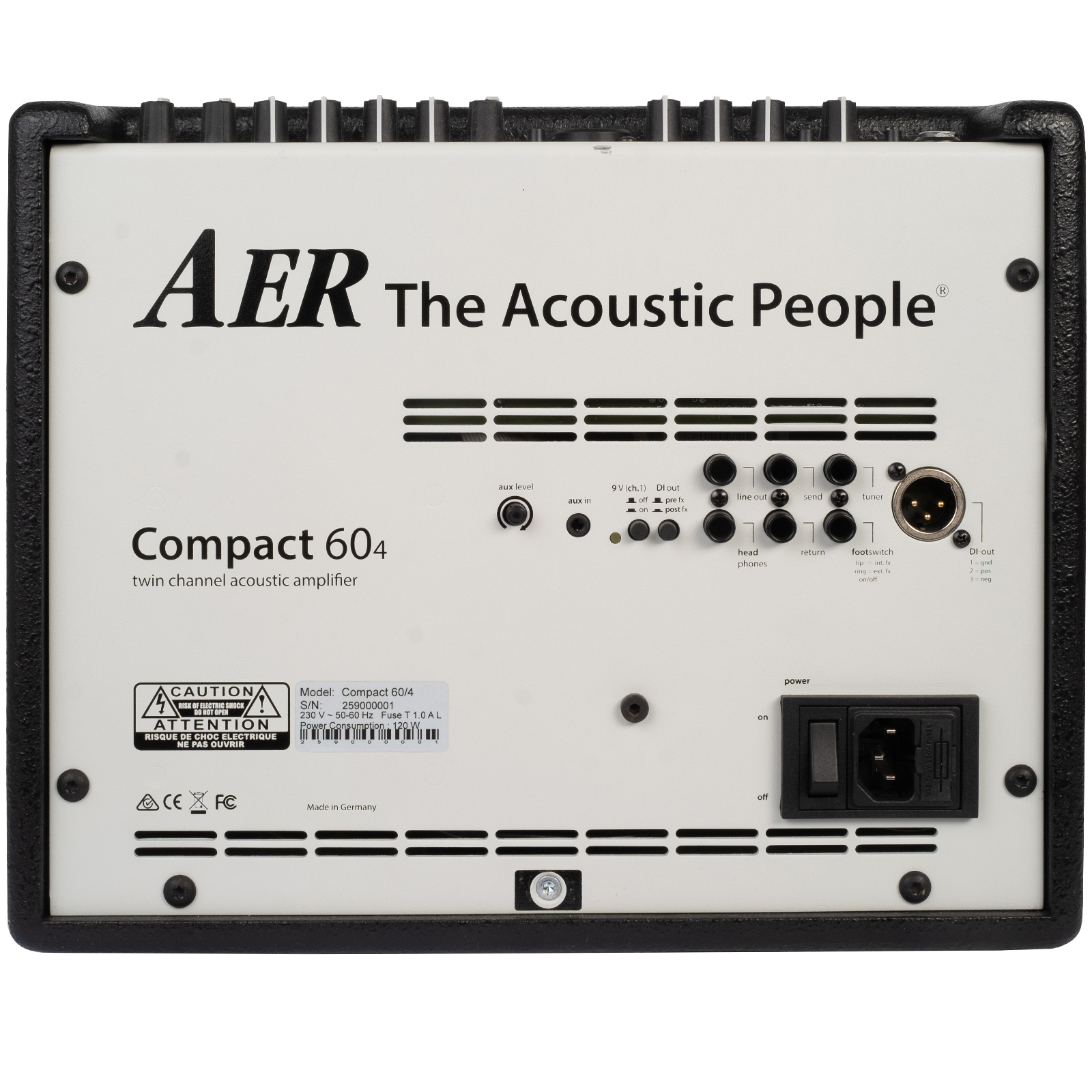

• Features

  headphones, line out, switchable DI-out,

  external effect loop via send and

  return, footswitch, aux in

  (internal/external effect on/off )

• Dimensions

  260 mm x 325 mm x 235 mm

  (10.20“ x 12.80“ x 9.25“), HxWxD

• Weight

  7,3 kg (16,09 lbs)
